ZXLD1371

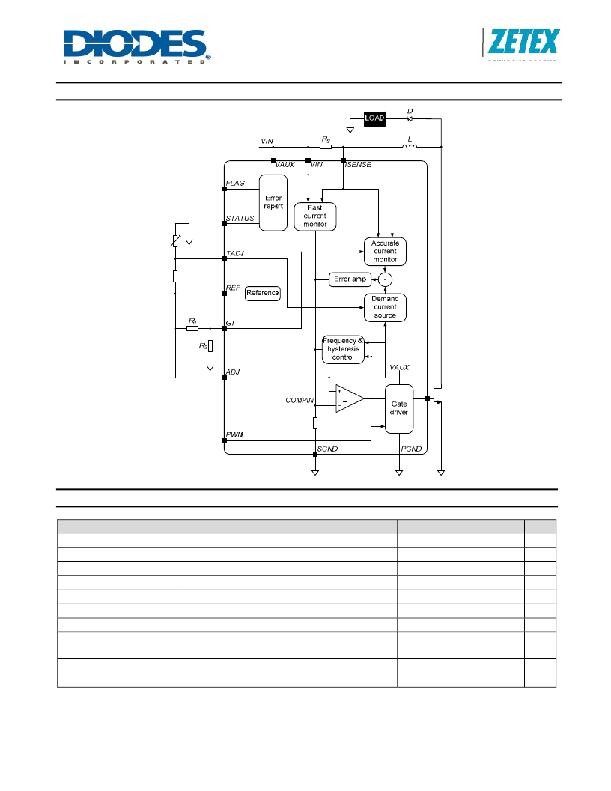

Functional Block Diagram
Absolute Maximum Ratings (Voltages to GND Unless Otherwise Stated) (Note 3)
Symbol
V IN
V AUX
V ISM
V SENSE
V GATE
I GATE
V FLAG
V PWM , V ADJ , V TADJ , V GI ,
V PWM
T J
T ST
Parameter
Input supply voltage
Auxiliary supply voltage
Current monitor input relative to GND
Current monitor sense voltage (V IN -V ISM )
Gate driver output voltage
Gate driver continuous output current
Flag output voltage
Other input pins
Maximum junction temperature
Storage temperature
Rating
-0.3 to 65
-0.3 to 65
-0.3 to 65
-0.3 to 5
-0.3 to 20
18
-0.3 to 40
-0.3 to 5.5
150
-55 to 150
Unit
V
V
V
V
V
mA
V
V
°C
°C
Stresses greater than the 'Absolute Maximum Ratings' specified above, may cause permanent damage to the device. These are stress ratings only; functional
operation of the device at these or any other conditions exceeding those indicated in this specification is not implied. Device reliability may be affected by
exposure to absolute maximum rating conditions for extended periods of time.
Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and
transporting these devices.
ZXLD1371
Document number: DS35436 Rev. 1 - 2
3 of 42
www.diodes.com
February 2012
? Diodes Incorporated
